A combiner box is one of those pieces of off-grid hardware that looks simple from the outside — a weatherproof enclosure with a few cables going in and one coming out — but the wiring decisions inside it determine whether your PV array survives a storm, a short circuit, or a rodent chewing through a cable. This article covers what actually matters: where to put fuses, where to put the surge device, where to put the isolator, and how to wire it so it doesn't kill someone.
A solar combiner box (also called a PV combiner box or DC combiner box) is an electrical enclosure that collects DC output from multiple solar panel strings, combines them onto a common busbar, and routes the combined power to the inverter. It also provides overcurrent protection, surge protection, and a safe disconnect point. Five distinct functions sit inside that enclosure: string current aggregation, overcurrent protection, transient overvoltage protection, safe isolation, and string monitoring.
In plain English: it lets you parallel multiple strings safely, protects each string from faults, protects the whole array from lightning-induced transients, and gives you a place to switch the DC off before the inverter.
A combiner box is typically needed when a PV system has 3 or more strings connected in parallel. For 1–2 strings, most modern inverters with built-in MPPT inputs are sufficient. If you're running a small off-grid shed on a single string, you probably don't need one. If you're running a homestead array with three or more paralleled strings, you almost certainly do.
These are not the same thing. A solar junction box is the small sealed plastic box on the back of each individual solar panel, containing bypass diodes and MC4 connector leads. A solar combiner box is a separate, system-level enclosure that combines the outputs of multiple strings. Off-grid installers sometimes refer to both as "the little box on the panel" or "the combiner" interchangeably. They are different components serving different functions.
A DC combiner box handles raw PV power before the inverter at voltages typically ranging from 600–1500V DC. An AC combiner box aggregates AC outputs from multiple inverters. They are not interchangeable because DC arcs do not self-extinguish. This is critical: an AC-rated enclosure, switch, or fuse used on the DC side of a PV system is a fire and arc-flash hazard. Everything in the pre-inverter combiner must be DC-rated.
| Component | Function | Relevant Standard |
|---|---|---|
| DC PV fuses (per string) | Overcurrent protection per string | IEC 60269-6 |
| DC isolator switch | Load-break isolation | DC-rated |
| DC MCB | Supplementary overcurrent protection | DC-rated |
| Type 2 DC SPD | Surge/transient overvoltage protection | IEC 61643-31 |

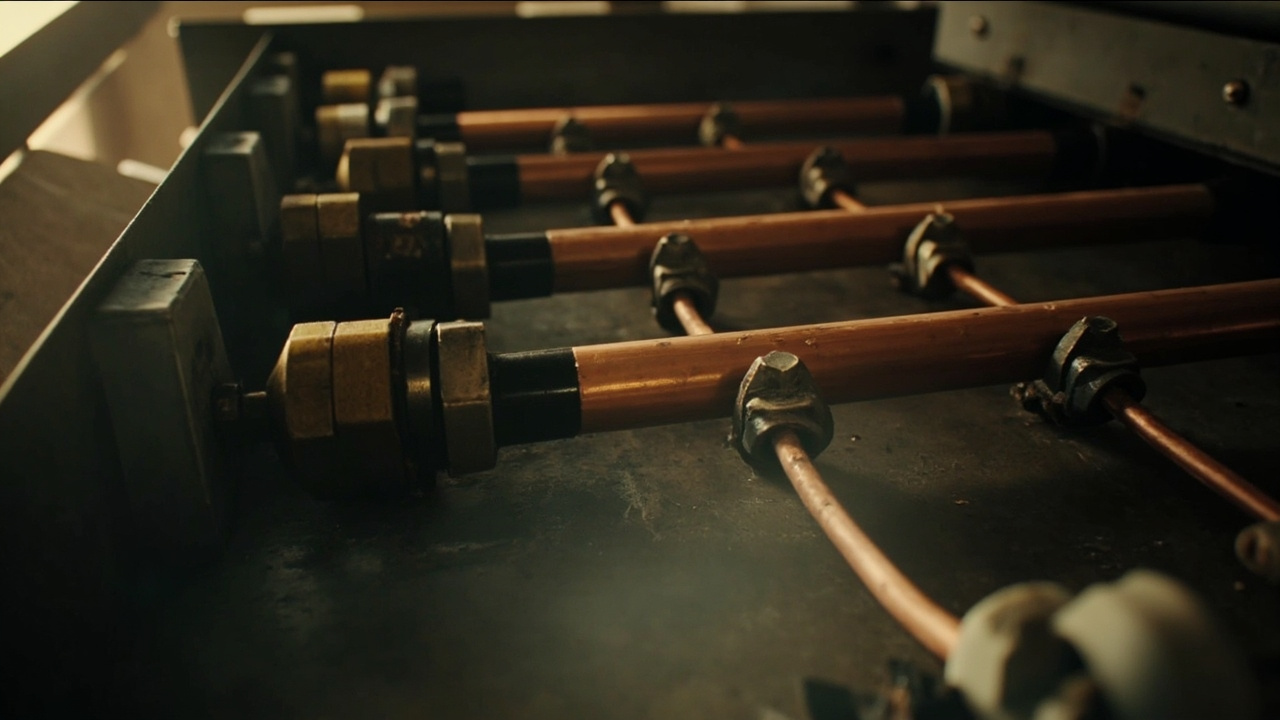

| DC busbar | Common connection point for paralleled strings | — |
| PE ground bar | Equipment earthing | AS/NZS 3000 wiring rules apply in Australia |
| Weatherproof enclosure | IP-rated housing for outdoor install | Per site conditions |
These components — DC PV fuses, a DC isolator switch, a DC MCB, a Type 2 DC SPD, a DC busbar, and a PE ground bar, all housed in a weatherproof enclosure — are the standard kit.
The internal arrangement of fuses, SPD, and isolator inside a solar combiner box is not a free-for-all — AS/NZS 5033 specifies requirements for isolation, overcurrent protection, and SPD placement. The clause structure distinguishes between arrays requiring string overcurrent protection (typically 3+ parallel strings) and those that do not, and requires that isolation devices be capable of safely breaking the array's maximum load current under DC conditions.
Sequence A: Panels → Fuse Holder → Isolator → Inverter, with the SPD tapped off the isolator input. Common on smaller arrays where fuses protect each string and the isolator provides a single lockout point for service work.
Sequence B: Panels → Isolator → Fuses → SPD → Inverter. This ordering places the load-break isolator upstream of the fuses and SPD, allowing it to be switched off for safe work on fuses and SPD. The isolator breaks load and interrupts any back-feed fault path from parallel strings before reaching the fuses.
Sequence C: Panels → Isolator → DC MCB → Fuses → SPD → Inverter. A DC isolator is the load-break device; the DC MCB provides overcurrent protection. Both must be DC-rated; the isolator's job is to be operated under load. Placing the isolator upstream of the fuses ensures fuses can be serviced and that back-fed fault current from other parallel strings is interrupted before reaching the fuse holders.
Sequence D (older low-voltage MPPT arrays): Panels → per-string fuses → combined SPD → isolator → inverter. Fuses are placed first to protect against combined current from other strings in a short-circuit event. This was the standard pattern on earlier off-grid inverter banks before higher-voltage strings became common.
A DC-rated load-break isolator is the prescribed primary isolation device in a combiner box. A DC MCB may be used in addition for overcurrent protection but is not a substitute for the isolator. Per AS/NZS 5033, the isolator must be operable under load and must isolate all live conductors; the MCB handles fault-current interruption, not the basic isolation duty.
SPD placement relative to fuses is debated, and neither ordering is risk-free. Upstream placement (SPD ahead of fuses) limits the follow-current the SPD must interrupt after it clamps a transient — the fuses blow on sustained fault current, sparing the SPD from thermal overload. Downstream placement (fuses ahead of SPD) exposes the fuses to surge current and allows the SPD to take the full let-through energy, which can shorten SPD life. For most off-grid Australian sites in lightning-prone areas — which is most of northern and eastern Queensland, the ranges, and the Top End — this is a real engineering trade-off, not a theoretical one.
On older low-voltage MPPT inverters with paralleled strings, per-string fuses at the string entry point interrupt back-feed from other paralleled strings through a faulted string. If three strings are paralleled into a busbar and one string develops a fault, the other two strings can back-feed current through the fault.
| Parameter | Typical Range / Requirement |
|---|---|
| PV string voltage | 200–1500V DC depending on system design |
| Combiner box voltage rating | Must exceed temperature-corrected open-circuit voltage of a single string (Voc × temperature correction factor for the lowest expected module temperature, e.g., −10 °C) — paralleled strings share the same voltage; parallel current is the sum of string Isc |
| Fuse rating | Sized to string Isc per the in-force AS/NZS 5033:2021 fuse-sizing rule — verify the current edition and any amendments before specifying |
| SPD type | Type 2 DC, IEC 61643-31 |
| Enclosure | Weatherproof, IP rating appropriate to location (IP65 typical for outdoor Australian installs) |
| Conductor material | Copper generally preferred over aluminium for small-scale PV combiner connections due to ease of termination and lower resistance |
| Termination torque | Loose terminals are a major fire risk and must be torqued to specification — always follow the component manufacturer's torque values |

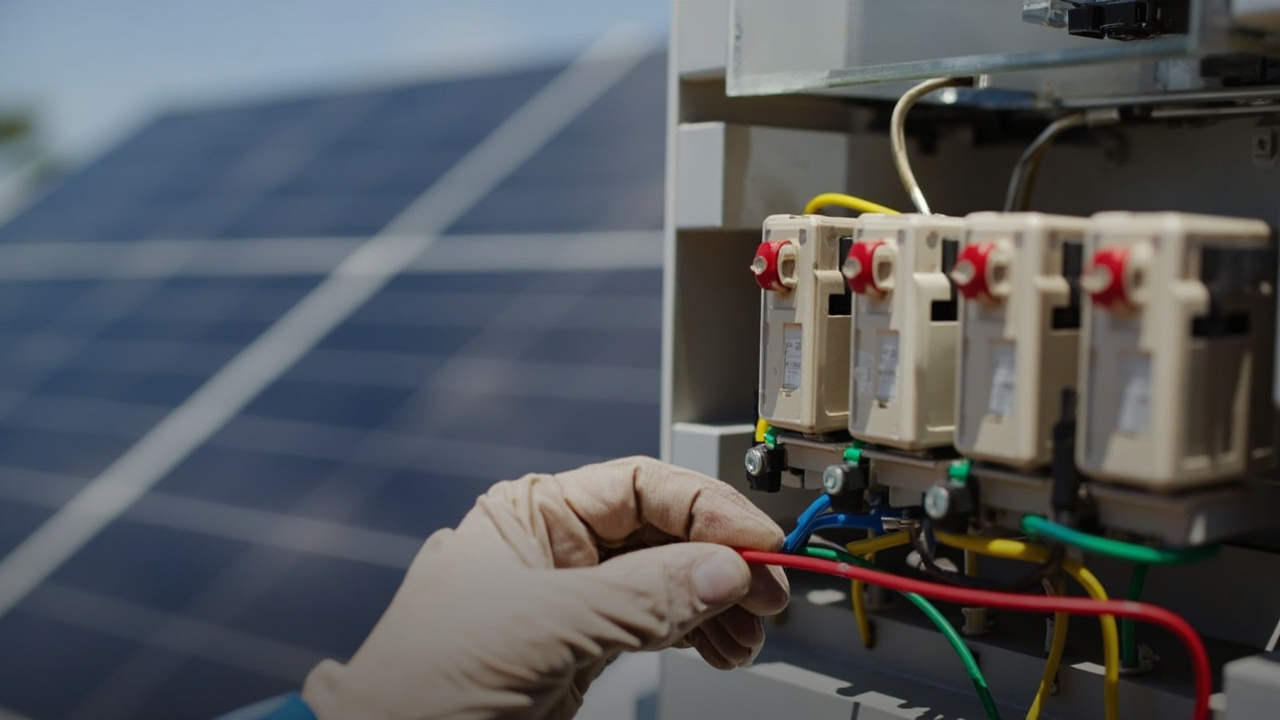

Each PV string must be individually fused to prevent a short in one string from damaging others. Fuses and breakers must be DC-rated; AC-rated components are unsafe for DC PV systems. This is non-negotiable. A 240V AC MCB will not safely break a 600V DC arc.

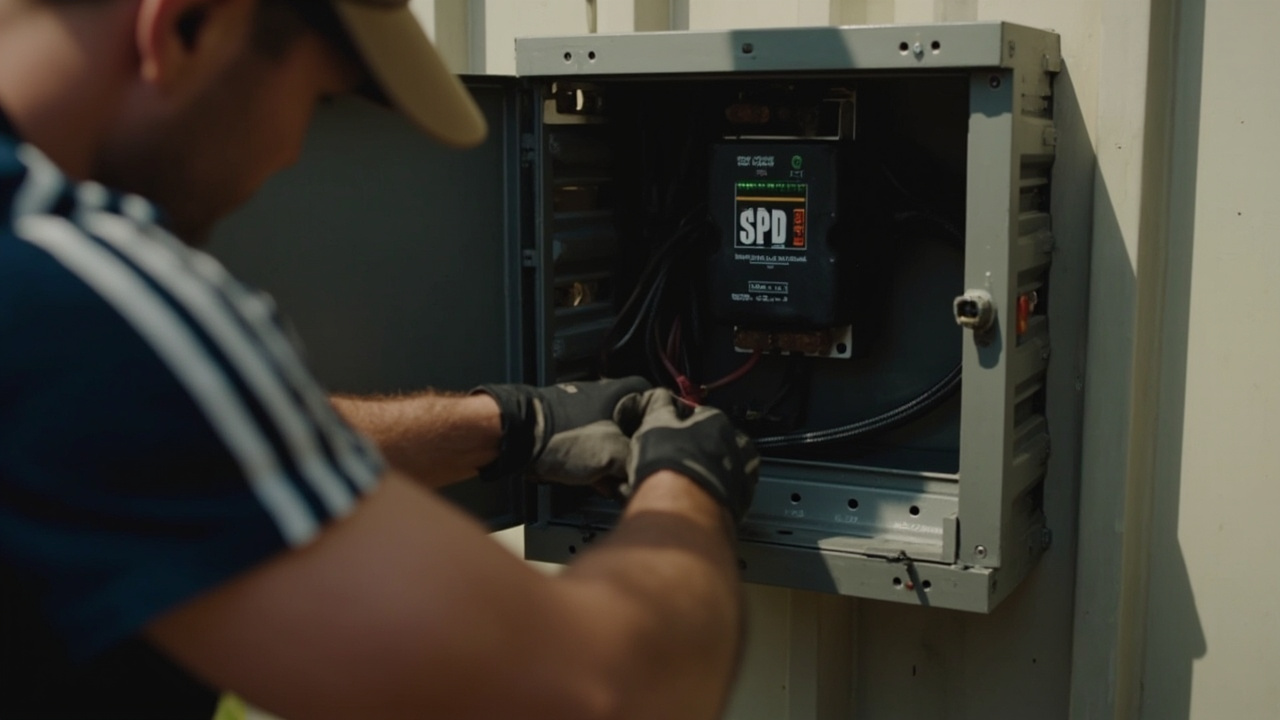

Surge protection is essential for off-grid systems, especially in lightning-prone areas like Australia. A Type 2 DC SPD per IEC 61643-31, wired as close to the array side of the combiner as practical, gives the transient a low-impedance path to earth before it reaches the inverter's input stage. Off-grid inverters are disproportionately expensive relative to the array, and a single lightning-induced transient can take out the MPPT section. The cost of an SPD is trivial compared to a replacement inverter.
For sites with known strike history or long DC cable runs between array and inverter (which act as antennae), surge protection is one of the highest-ROI additions you can make to a combiner.
The PE (protective earth) bar inside the combiner ties the enclosure, the SPD earth terminal, and any exposed metalwork back to the main earth. AS/NZS 3000 (the Australian Wiring Rules) and AS/NZS 5033 (the Australian Standard for PV array installation) govern the specifics — both are referenced in CEC accreditation and in any licensed installer's workflow. Earthing the SPD but not the enclosure, or vice versa, leaves a gap that defeats the purpose of either.
Working inside a DC combiner box means working on conductors that are live whenever the sun is on the array. PV modules are current sources — you cannot switch them off. At night, Voc drops to effectively zero once the cells are in darkness; the real night hazard is capacitive charge stored in long DC cable runs and any DC-side capacitors in the inverter or charge controller, which can hold dangerous voltage for minutes after dark. In daylight, isolation only stops the combined output going to the inverter; the strings themselves remain energised up to the fuses or MCBs.
Call a licensed electrician (and ideally a CEC-accredited PV installer) when:
PV combiner boxes housing fuses, SPDs, and isolators must be installed in weatherproof enclosures rated for outdoor conditions. Type 2 DC surge protection devices used in combiner boxes should comply with IEC 61643-31. DC PV fuses used in combiner boxes should comply with IEC 60269-6. These are baseline requirements, not best-practice extras.
If in doubt, get a licensed sparkler with PV experience to sign off the job. The cost is modest; the cost of a DC arc flash or a house fire is not.
Do I need a combiner box for a small off-grid system?
If you have 1–2 strings and a modern MPPT inverter with dual MPPT channels, you can usually run the strings directly into the inverter without a separate combiner. A combiner box is typically needed when a PV system has 3 or more strings connected in parallel.
Can I use AC-rated fuses or breakers in the DC combiner?
No. Fuses and breakers must be DC-rated; AC-rated components are unsafe for DC PV systems because DC arcs do not self-extinguish at the zero-crossing the way AC arcs do.
Should the fuses go before or after the SPD?
SPD placement relative to fuses is an engineering trade-off. Upstream placement (SPD ahead of fuses) limits follow-current through the SPD after it clamps; downstream placement (fuses ahead of SPD) exposes fuses to surge current but lets the SPD take the full let-through. For most off-grid Australian sites in lightning-prone areas, upstream SPD placement is the safer default because it limits sustained follow-current through the SPD module.
Is a DC isolator the same as a DC MCB?
No. A DC isolator is the load-break device, rated to make and break under load. A DC MCB provides overcurrent protection. Both must be DC-rated; the isolator's job is to be operated under load, and the MCB handles overcurrent faults. They are complementary devices, not interchangeable.
What conductor material should I use — copper or aluminium?
Copper is generally preferred over aluminium for small-scale PV combiner connections due to ease of termination and lower resistance. Aluminium requires bi-metallic terminations, is more sensitive to torque and oxidation issues, and is rarely worth the complexity on a small off-grid array.
Does every combiner box need string monitoring?
String monitoring is a useful diagnostic feature for residential off-grid systems but is not a universal requirement under AS/NZS 5033. It becomes more valuable as string count and array size increase, where a single under-performing string can drag down the whole array without obvious external signs.
