When the grid doesn't reach you, or when you've chosen to step off it entirely, backup power stops being theoretical. In my work with off-grid systems across Central Queensland, I've seen the same failure pattern repeat: undersized battery banks, neglected generators, and load management that exists only on paper. This article is the practical framework I use to fix those problems.
An off-grid power system operates entirely independently from the public utility grid, with no connection to existing infrastructure or utility companies. The homeowner is responsible for generating and managing their own power. Off-grid systems continue to operate during grid failures and blackouts, but that independence comes at a cost: the homeowner becomes fully responsible for power shortfalls, winter solar dips, battery replacement cycles, inverter issues, and backup generation decisions.
For remote properties, this trade-off often makes economic sense. Secondary grid-connection lines in rural areas can cost tens of thousands of dollars to install, which can make off-grid systems a more economical alternative for remote properties. If you're already connected to the grid and just want resilience, a grid-connected battery is usually the better path; off-grid is for properties where connection isn't viable or where full energy independence is the goal.
An off-grid system typically consists of generation assets (usually solar), battery storage, inverters, backup generation, and load management. The main components break down further:
Off-grid renewable energy data across solar, hydro, bioenergy, and wind has been tracked in Australia from 2015 to 2024, but the core system topology has stayed consistent: generate, store, convert, manage.
The first mistake I see is people buying panels before they've calculated demand. Energy demand for an off-grid system should be calculated by listing all devices, multiplying each device's wattage by the hours used per day to get daily watt-hours (Wh). Add everything up. Then add more.
Seasonal variation (such as winter versus summer sunlight) should be factored into off-grid system sizing, with buffer capacity above baseline needs. In Central Queensland, winter solar output can drop to roughly 60–70% of summer peaks. If you size for summer, you'll be running the generator through winter. If you size for winter, you'll overproduce in summer and balance through load management.
Here's a simplified demand table for a typical small off-grid homestead. Fridge wattage is the compressor's nameplate rating while running; because the compressor cycles on and off, real energy use is typically 30–50% of nameplate × 24h:
| Appliance | Typical Wattage | Hours/Day | Daily Wh |
|---|---|---|---|
| Fridge (efficient, ~35% duty) | 80–150W (cycling) | 24 | ~600–1,250 |
| LED lighting (whole house) | 10–15W per fitting | 5 | ~150–225 |
| Water pump (~25% duty) | 400–800W | 1 | ~100–200 |
| Laptop | 50–80W | 6 | ~300–480 |
| Phone charging | 10–20W | 3 | ~30–60 |
| Washing machine (cold) | 300–500W | 0.5 | ~150–250 |
| Baseline subtotal | ~1,330–2,465 Wh/day |
A realistic single-point baseline for a small efficient homestead is ~2,000 Wh/day at the midpoint of each row, rising to ~2,500 Wh/day if you assume worst-case (highest) appliance behaviour. The original lower bound was not reproducible from the row data because it required the lowest value of every appliance simultaneously; use the midpoint and add buffer rather than quoting an unrealistically tight range.
Add 30–50% buffer for seasonal variation and unexpected loads. That puts most small homesteads in the 2,600–3,700 Wh/day range before adding heavy intermittent loads like air conditioning, which change the calculation entirely.
Solar alone doesn't carry an off-grid system through extended cloud, storms, or winter doldrums. Backup generation (such as a generator) should be planned for extended low-solar periods and maintenance contingencies in off-grid systems. In my experience these systems always need a generator; the question is whether it's sized and maintained properly.
Two rules I follow:
1. Size the generator for your heaviest single load plus motor-starting headroom. A 5kVA generator at 0.8 power factor delivers roughly 4kW of usable real power, not 5kW — inductive loads (pumps, compressors, induction motors) pull reactive current that doesn't do work. On top of that, motor starting surges can hit 3–6× running current, so a 1.5kW pump that draws ~10A running can briefly pull 30–60A. Oversize for the worst surge you'll encounter, then add 20% headroom. For most small homesteads this means a 6–8kVA generator if any inductive load is in the mix, not 5kVA.

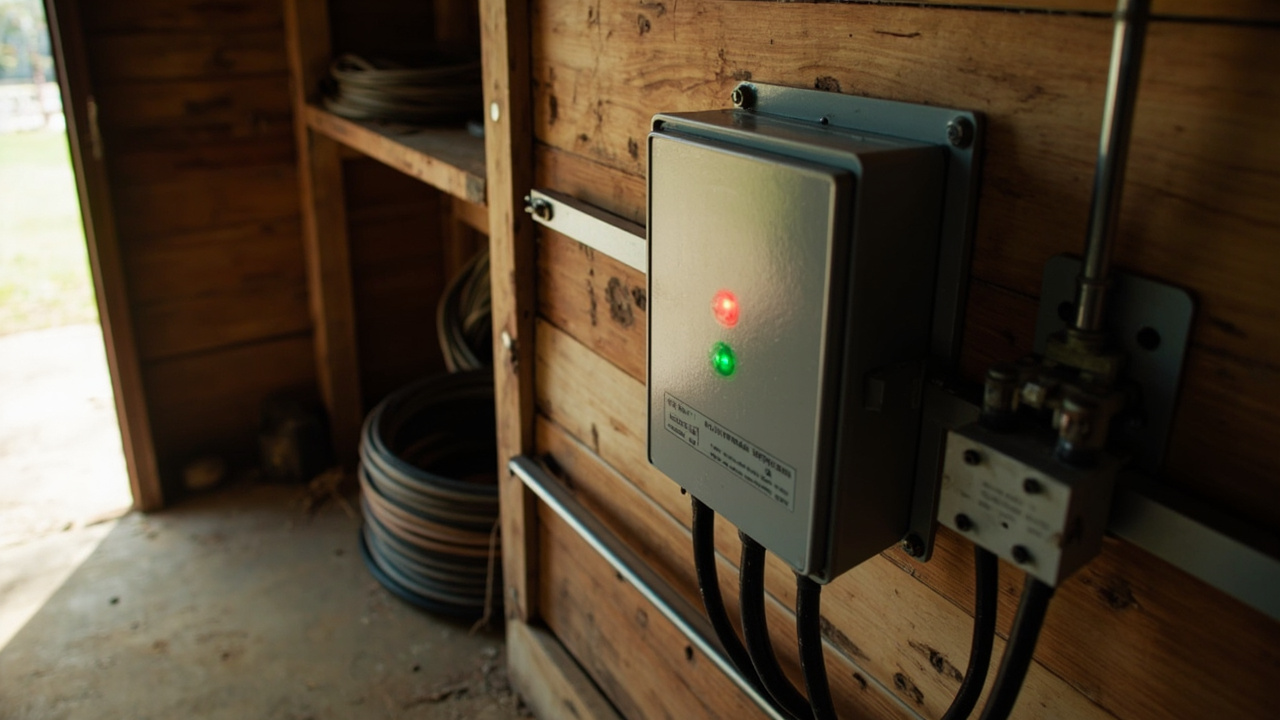

2. Test it monthly under load. A generator that starts on the first pull in the shed isn't proven until it's been running at 50%+ capacity for 30 minutes. Automatic Transfer Switches (ATS) need the same periodic test; they fail silently.
Fuel storage matters too. Diesel keeps longer than petrol. Rotate stock. A generator that's out of fuel when the battery bank hits 20% state of charge is a liability, not a backup.

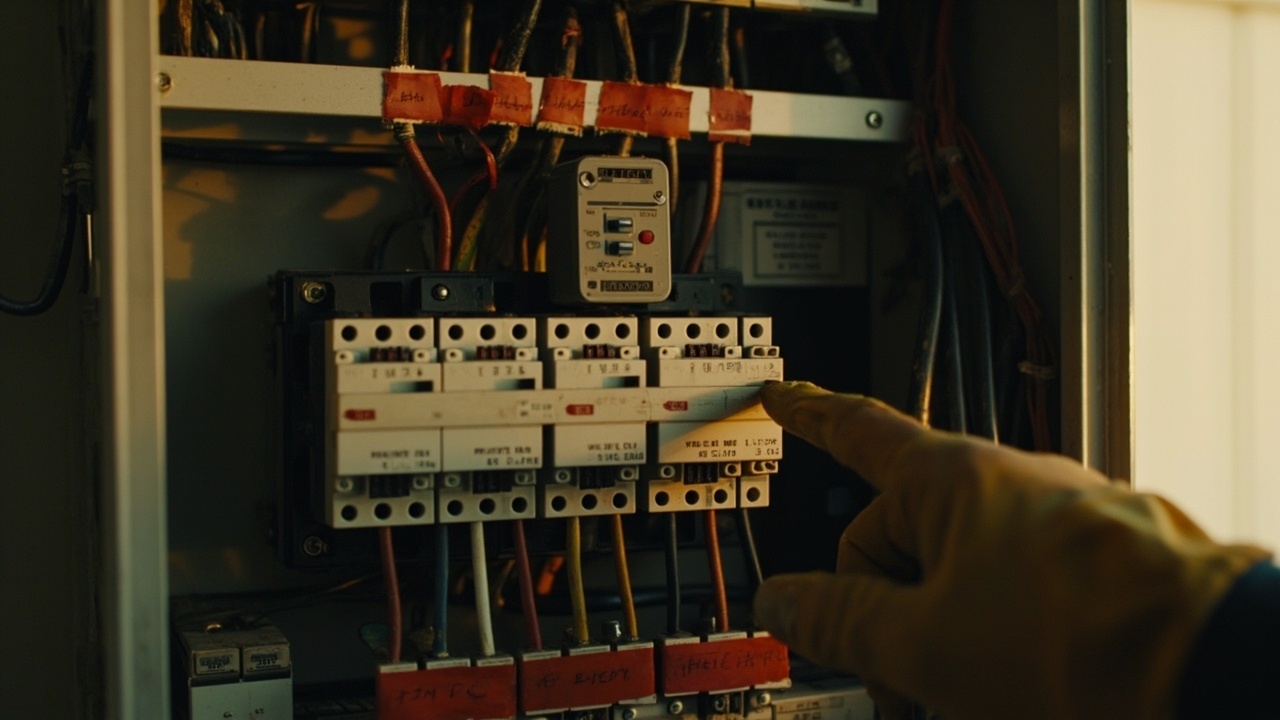

Off-grid systems should include disciplined load management, deciding what runs, when it runs, and what gets shed first. This isn't glamorous work; it's the difference between a system that runs smoothly and one that browns out every afternoon.
Practical load shedding tiers:
The concept of load shedding to protect essential loads is correct and standard practice for off-grid systems. If your inverter doesn't have programmable load shedding, your manual habits have to fill that gap.
Australian electrical work on 230V systems is regulated. Here's where professional input is non-negotiable:
Charge controllers should be used to prevent batteries from exceeding maximum voltage and temperature limits during charging. Skipping this step destroys batteries and creates fire risk.
Energy demand assessments should account for seasonal variation and include a buffer above baseline consumption to avoid system shortfall. If your installer doesn't ask about your winter loads, find another installer.
If you're not licensed, don't touch the AC side, and don't treat the DC battery side as harmless either. Australia defines extra-low voltage (ELV) as ≤120V DC, but that is a wiring-installation threshold, not a safe-to-touch threshold. Any 24V or 48V lithium battery string can deliver lethal arc-flash and short-circuit currents, and a faulted 48V bank can weld tools and ignite cables. Battery cabling, BMS configuration, and string-level fusing should be performed or directly supervised by a licensed electrician familiar with AS/NZS 3000 and the CEC's battery installation guidelines.

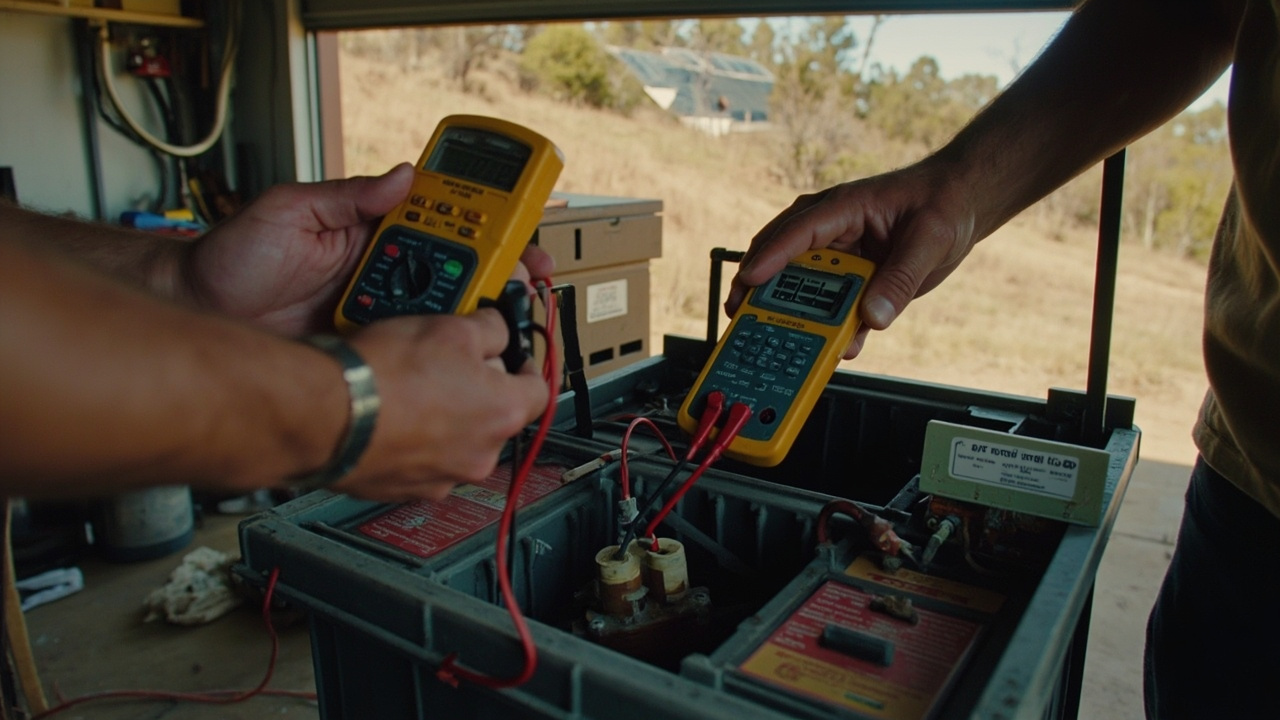

Off-grid systems fail because of neglect, not bad design. A realistic maintenance rhythm:
Lithium batteries still need monitoring, but the type of monitoring depends on chemistry. LFP (LiFePO₄) is the common off-grid choice: calendar and cycle life are mostly limited by depth of discharge and operating temperature, with low thermal-runaway risk. NMC packs offer higher energy density but are more thermally sensitive, suffer accelerated calendar fade at high state of charge, and can enter thermal runaway if the BMS is bypassed or a cell is mechanically damaged. For NMC, all balancing and discharge must route through the BMS — never bypass it for "more capacity." No battery lasts forever; plan for replacement in your budget.
Do I need a generator if I have enough battery capacity?
Yes. Backup generation should be planned for extended low-solar periods and maintenance contingencies in off-grid systems. Even oversized battery banks get drained during prolonged bad weather or equipment faults.
How long do lithium batteries last in off-grid systems?
Quality lithium-ion batteries typically deliver several thousand cycles, but exact lifespan depends on depth of discharge, operating temperature, and charge/discharge rates. Check the manufacturer's cycle-life specifications at your planned depth of discharge.
Can I add more solar panels later?
Usually yes, but your charge controller and inverter must have spare capacity. Oversizing the inverter and charge controller at initial install makes future expansion cheaper.
Is off-grid cheaper than grid connection for rural properties?
Secondary grid-connection lines in rural areas can cost tens of thousands of dollars to install, which can make off-grid systems a more economical alternative for remote properties. The crossover point depends on distance to the nearest transformer, terrain, and your load profile.
What's the biggest mistake people make with off-grid systems?
Undersizing for winter and neglecting generator maintenance. The second biggest is skipping load management discipline.
Do off-grid systems work during blackouts?
Off-grid systems continue to operate during grid failures and blackouts. That's their primary advantage — but only if the system is properly maintained and the generator is functional.
Off-grid in Central Queensland is workable, but it's not a set-and-forget arrangement. The systems that last are the ones where the owner treats energy management like a daily chore — checking state of charge, managing loads, running the generator before it's urgently needed. The systems that fail are the ones where someone thought batteries were magic and generators were optional.
Size for winter, manage loads like your life depends on it (because your lights do), and keep the generator honest with monthly tests. That's the short version.
